Product Overview

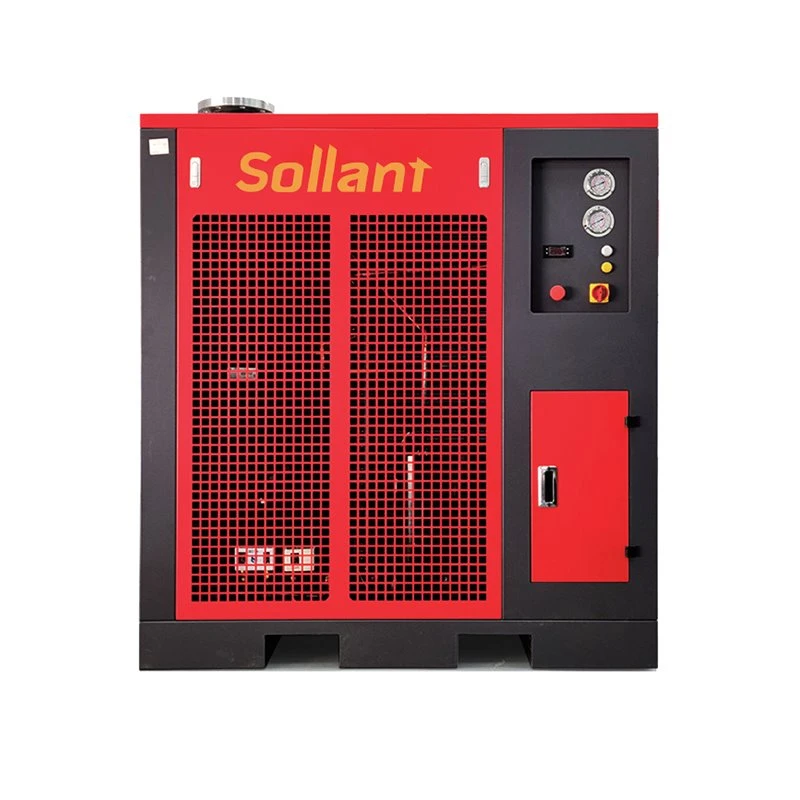

This product is a VSD refrigerated compressed air dryer designed to remove excess moisture from compressed air. Utilizing variable-frequency drive technology, the unit automatically adjusts the compressor's operating frequency based on real-time thermal load monitoring to precisely match cooling output. This ensures a stable dew point while significantly reducing energy consumption, making it an ideal choice for green upgrades in compressed air post-treatment.
Key Product Features
Eco-friendly, Low-carbon Design
- The refrigeration system utilizes eco-friendly refrigerants such as R513A and R410A, ensuring green and high-efficiency operation;
- It employs a counter-flow heat exchange method to maximize heat transfer surface area and air flow channels, resulting in superior pre-cooling capability and minimal pressure drop;
- Equipped with a large-bore, zero-air-loss drain valve that offers high drainage capacity and resistance to clogging.
Precise and Stable Control
- The system supports continuous operation and features precise load-linked frequency control;
- Load levels are determined by monitoring the target temperature, with a wide frequency adjustment range of 30–120 Hz;
- Compressor frequency is rapidly and precisely matched to the actual thermal load, preventing energy waste.
Product Specifications
Specification table for water-cooled VSD refrigerated air dryer
Specification table for air-cooled VSD refrigerated air dryer
VSD Refrigerated Air Dryer FAQs
Q1: What are the advantages of R513A and R410A refrigerants?
Both refrigerants are environmentally friendly products; they do not deplete the ozone layer and have a low greenhouse effect, aligning with current international environmental trends. Additionally, they offer excellent thermodynamic properties and high cooling efficiency, making them ideal alternatives to traditional high-GWP refrigerants.
Q2: What is counter-flow heat exchange?
Counter-flow heat exchange refers to a process where compressed air and the refrigerant flow in opposite directions within the heat exchanger. Compared to parallel-flow arrangements, counter-flow increases the mean temperature difference and enhances heat transfer efficiency, resulting in more effective pre-cooling of the compressed air. Additionally, the flow channel design ensures uniform airflow distribution and minimizes pressure drop, which helps reduce backpressure at the air compressor outlet.
Q3: How stable is the dew point of the variable-frequency unit?
Because the variable-frequency system operates continuously without frequent start-stop cycles and adjusts cooling output in real-time based on the target temperature, fluctuations in the outlet dew point are minimal; compared to the "on/off" control method of fixed-frequency units, the dew point curve is significantly flatter and more stable.
