Product Overview

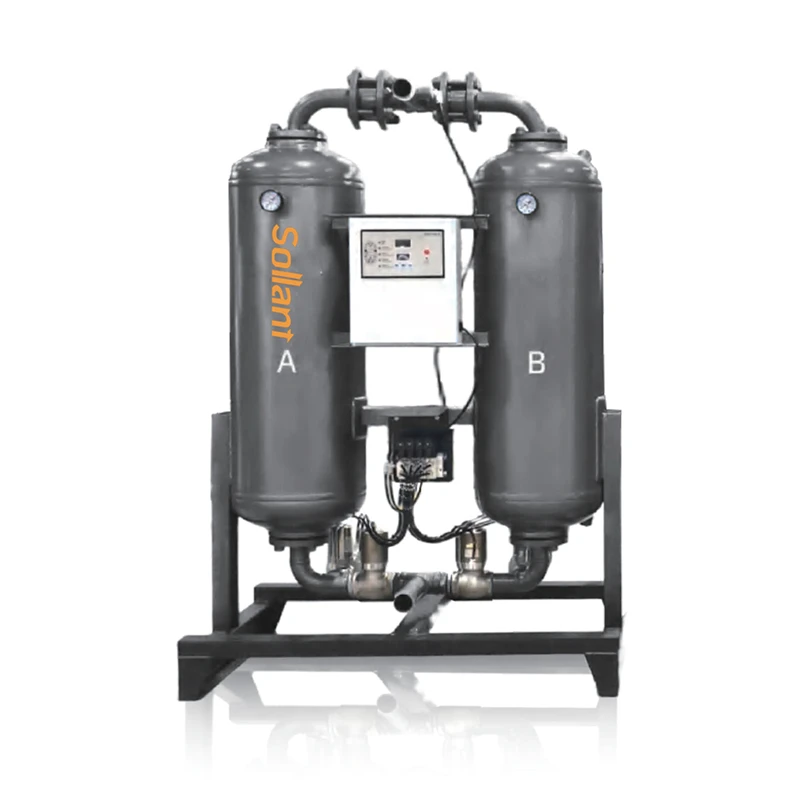

This product is a heatless twin-tower adsorption air dryer. It utilizes an alternating operation mode between two adsorption towers and leverages the strong moisture-adsorbing capability of the desiccant to achieve deep drying of compressed air-without the need for an external heat source-thereby attaining an extremely low pressure dew point. Designed and manufactured in accordance with multiple national standards, the unit features a rational structure and precise control, making it suitable for various industrial applications that demand strict control over compressed air moisture content.
Key Features
Strict Manufacturing Standards
Designed, manufactured, and tested in strict accordance with ISO9001, GB150, ISO7183 (refrigerated dryer standards), QS, and pressure vessel inspection codes, ensuring safe and reliable operation. The tower structure and control program are optimally designed to ensure sufficient contact and interaction time between the compressed air and the adsorbent, achieving stable drying performance.
High-Quality Adsorbent and Filling Process
High-purity activated alumina and molecular sieves (meeting national standards) are used as adsorbents. A vacuum filling method ensures a dense, uniform bed that resists pulverization and offers a long service life. The adsorption towers hold pressure vessel certification, guaranteeing safety.
High-Strength Heater
The heater features excellent mechanical strength, pressure resistance, and dielectric strength, offering high heating efficiency and superior insulation.
Intelligent Control System
Equipped with an intelligent controller, the system provides real-time display of operating parameters, high control precision, and excellent stability, while facilitating easy daily cleaning and maintenance.
High-Performance Pneumatic Control Valves
These valves offer rapid response, a long service life, and stable operation.
Low-Power Solenoid Valves
Standard low-power solenoid valves ensure high precision and rapid response.
High-Efficiency Silencer
Utilizes a composite structure of multi-layer fibers and sound-insulating materials combined with a unique mechanical noise-reduction design to ensure low operating noise.
Product Specifications
Frequently Asked Questions (FAQ)
Q1: What is a heatless regenerative adsorption dryer?
A heatless regenerative adsorption dryer operates using a dual-tower alternating system. While one tower adsorbs moisture, the other undergoes depressurization and regeneration using a portion of the dried compressed air stored within the system to purge moisture from the adsorbent. The towers switch periodically to ensure the continuous output of compressed air with a low dew point.
Q2: How often does the adsorbent need to be replaced?
Provided the compressed air undergoes proper pre-treatment (meeting standards for oil and dust content), the adsorbent bed-packed under vacuum-remains dense and stable, resisting pulverization; it typically lasts 2 to 3 years or even longer. It is recommended to monitor the outlet dew point regularly and consider replacement if a significant rise in the dew point is observed.
Q3: What should be considered during equipment installation?
Installation in a well-ventilated indoor area protected from rain is recommended, with sufficient clearance left around the unit for maintenance access. A pre-filter must be installed at the inlet to ensure that oil and particulate matter levels in the compressed air remain within permissible limits, thereby preventing adsorbent contamination and failure.
Q4: Approximately how often does the adsorbent need to be replaced?
The service life of the adsorbent depends on factors such as inlet oil content, moisture content, and operating pressure. Given proper compressed air pre-treatment (oil content ≤ 0.1 ppm), the adsorbent bed-packed under vacuum-remains dense and stable, typically allowing for a service life of 2–3 years or even longer. It is recommended to monitor the outlet dew point regularly and consider replacing the adsorbent when a significant rise in dew point is observed.
Q5: How much noise reduction does the silencer provide?
Significant noise is generated by the sudden drop in pressure during regeneration exhaust. This unit's silencer employs a composite structure of multi-layer fibers and sound-insulating materials, combined with a unique internal mechanical noise-reduction channel design. Compared to standard single-layer sound-absorbing foam structures, it significantly lowers exhaust noise levels at the same flow rate, thereby improving the on-site working environment.
