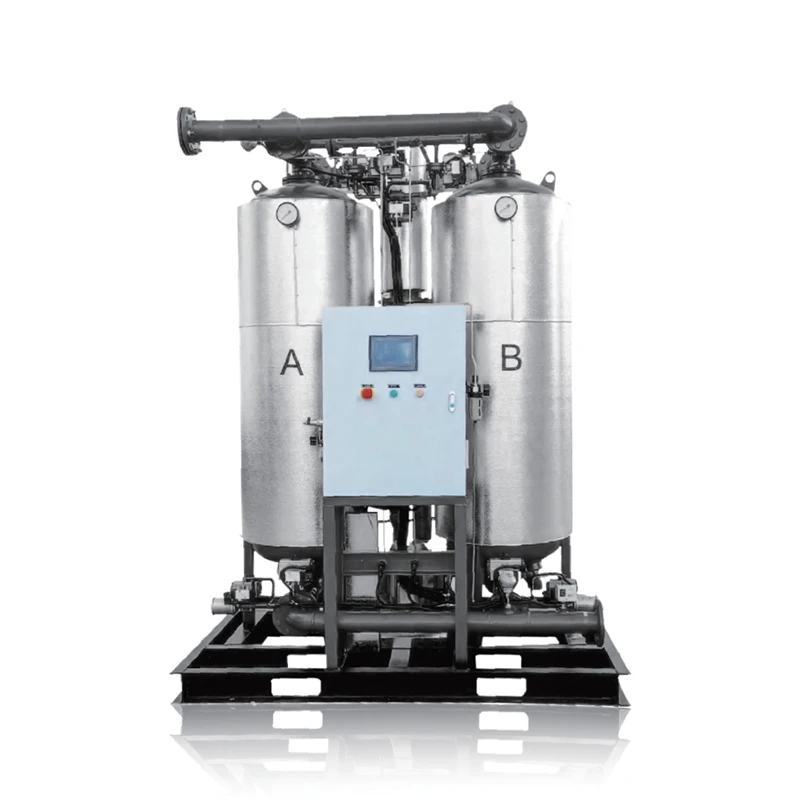

Product Overview
This product is a micro loss blower heat desiccant air dryer. It utilizes a blower to draw in ambient air, which is then heated to regenerate the adsorbent; only a minimal amount of compressed air is consumed for instrumentation and make-up purposes, resulting in significantly lower purge air consumption compared to traditional heatless or heated regeneration methods. The unit integrates high-efficiency adsorbent, an intelligent control system, and IoT capabilities, delivering substantial energy savings while maintaining a stable, low dew point. It is ideally suited for industrial applications that demand cost-efficiency and intelligent management.
Operating Principle Overview
This unit utilizes two adsorption towers that operate alternately. While one tower is in the adsorption phase, moisture in the compressed air is captured by the adsorbent, yielding dry output gas; simultaneously, the regeneration tower uses a blower to draw in ambient air, which is heated to regenerate the adsorbent and drive off the captured moisture. Following regeneration, the bed temperature is lowered to near-ambient levels via blower cooling before the unit switches back to the adsorption mode. Continuous and stable dry air supply is achieved through the periodic switching of the two towers.
Key Features
High-Efficiency Adsorbent
A high-performance adsorbent developed in collaboration with upstream suppliers; it features a specific surface area of up to 350 m²/g and excellent adsorption kinetics, ensuring a stable and reliable outlet dew point.
Vacuum Loading Process
The adsorbent is loaded using a vacuum process, resulting in a dense, compact bed with strong inter-particle bonding; this minimizes pulverization and effectively extends the adsorbent's service life.
Intelligent Energy-Saving Control
Equipped with a PLC controller supporting real-time monitoring and data logging, the system integrates timing-based, load-tracking, and dew-point-based control modes to enable on-demand regeneration and highly energy-efficient operation.
Smart IoT Capabilities
Features IoT connectivity supporting remote monitoring and control, centralized management of multiple units, intelligent analysis of operational data, and predictive fault warnings, helping users optimize equipment operation and maintenance strategies.
Explanation of Micro Loss Advantages
Compared to traditional heatless or heated regeneration methods, this unit primarily utilizes ambient air drawn in by a blower as the regeneration carrier gas. It consumes only a minimal amount of dried compressed air for functions such as valve actuation and instrument air supply. Consequently, the overall regeneration air consumption is significantly lower than that of heatless (10%–15%) or heated (5%–8%) regeneration systems, thereby maximizing the reduction of compressed air waste while ensuring effective drying performance.
Technical Specifications for Micro Loss Blower Heat Desiccant Air Dryer
