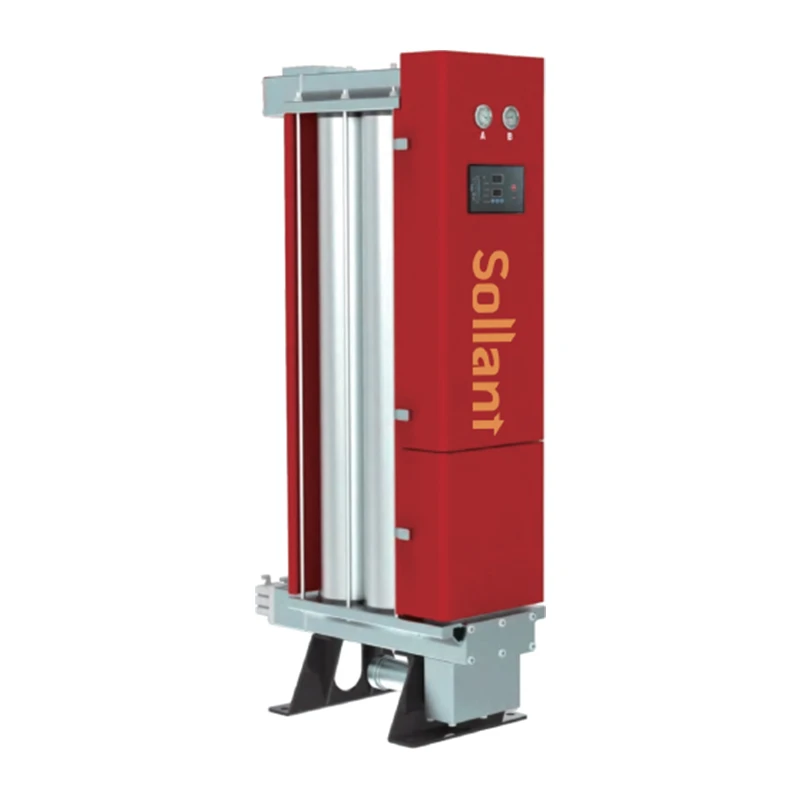

Product Features
Even Flow Distribution
Compressed air is evenly distributed to every adsorbent particle, preventing localized overloading or stagnant "dead zones." This ensures synchronous saturation and regeneration of the adsorbent, maximizes utilization efficiency, and maintains a stable output dew point.
Exemption from Pressure Vessel Inspection
The unit falls outside the scope of mandatory pressure vessel regulations, eliminating the time and costs associated with annual inspections and avoiding the need for system shutdowns to dismantle and transport the vessel for testing.
Lightweight Aluminum Alloy Construction
The housing is made of high-strength aluminum alloy, which is corrosion-resistant and rust-proof. This prevents secondary contamination of the compressed air by rust particles, ensuring a clean air supply.
Replaceable Adsorbent Cartridges
The adsorbent is encapsulated in independently replaceable cartridges. Replacement does not require dismantling the entire unit or performing on-site bulk filling; a single person can complete the task quickly, significantly reducing maintenance downtime.
Compact Structure
The adsorbent utilizes a tubular arrangement design, resulting in a more compact footprint. For the same flow rate, the unit is significantly smaller and lighter than traditional equipment, making it ideal for installations where space is limited.
"Blizzard" Filling Method
The adsorbent settles evenly in a fluidized state, creating a dense and orderly particle arrangement. This eliminates the "tunneling effect" common in traditional gravity filling, ensures full contact between the airflow and the adsorbent, and results in a more stable dew point.
Technical Specifications for Modular Adsorption Air Dryer
Application Scenarios
Medical and Pharmaceutical Industries
Rust-free aluminum alloy construction meets requirements for clean compressed air.
01
Food and Beverage Processing
Prevents rust contamination and ensures air safety.
02
Precision Electronics Manufacturing
Compact size suits the tight layouts of cleanrooms.
03
Laser Cutting and Precision Instruments
Stable dew point ensures reliable equipment operation.
04
Laboratories and Research Institutions
Design eliminates the need for annual inspections, offering flexibility and convenience.
05
FAQs About Modular Adsorption Air Dryers
Q1: What is the main difference between modular adsorption dryers and traditional adsorption dryers?
Traditional dryers typically feature a monolithic tank structure; they are bulky, heavy, and usually subject to pressure vessel regulations. In contrast, modular dryers utilize a design based on combined aluminum alloy core modules. They are compact and lightweight, exempt from annual pressure vessel inspections, and allow for the individual replacement of core modules, making maintenance much faster and easier.
Q2: What is "Blizzard Filling" technology, and how does it stabilize the dew point?
"Blizzard Filling" is a dynamic, fluidized filling process. During filling, the adsorbent settles uniformly, resulting in a tight, orderly arrangement of particles. This completely eliminates the "tunneling effect" common in traditional gravity filling-where gas short-circuits through localized channels, rendering parts of the adsorbent ineffective. With uniform filling, the airflow makes full contact with the adsorbent, naturally leading to a more stable dew point.
Q3: How is uniform flow distribution achieved?
Specially designed internal flow-guiding structures ensure that the compressed air entering the tower is evenly distributed across the cross-section. This guarantees that every adsorbent particle comes into contact with the airflow and participates in the adsorption process, preventing localized overloading or stagnant "dead zones," thereby significantly increasing overall utilization efficiency.
Q4: Does the equipment require daily inspections during operation?
Yes. It is recommended to check the inlet/outlet pressure, pressure differential, and dew point readings daily, and to periodically observe the unit for abnormal noise or leaks. However, thanks to the modular core design, the inspection tasks are significantly simplified compared to traditional equipment.
Q5: Can the equipment be installed outdoors?
The equipment is designed for indoor installation, with a recommended ambient temperature range of 2°C to 50°C; outdoor placement should be avoided. If outdoor installation is required, protective measures against rain and freezing must be installed; please contact us for a customized solution.
